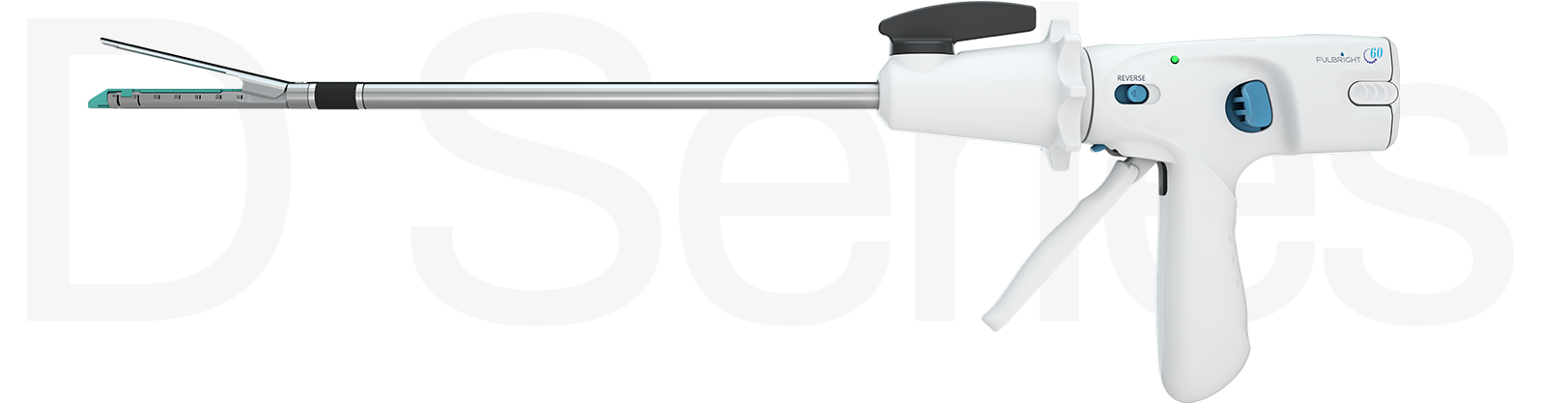

D Series

First Powered Stapler in China

Jaw-rotating collar
Stepless jaw-articulating lever
Anvil jaw
Reload jaw
Reload
Articulation joint
Shaft
Anvil-closing trigger
Handle
Battery indicator
Anvil-opening button
Battery
Blade-retrieving switch

¹ ONLY to be used if the blade can not be refrieved back.
² ONLY to be used if the blade-retrieving switch does not reverse the blade.

Features

Compact design featuring a shorter trigger-handle distance (≈ 1cm shorter at the proximal end of the handle and ≈ 1.5cm shorter at the distal end).
Integrated anvil with cold extrusion technology.
Tissue bunching cordon marker (yellow line) and blade seating align ment marker (red line).
Patented jaw design with a triple slide rail-and-block combination rather than the double rail-and-block design of the Endo GIA™.
Stepless jaw-articulating lever.
No less than 45° articulation on each side of the articulation joint.
Detachable arched tip (optional).

Benefits

The articulating jaw can adopt any angle in the -45° to 45° articulation range. Or 45° articulation range on both sides.
Offers 30-40% higher strength vs. the Endo GIA when compressing tissue before firing (pre-compression).
Ensures operation compliance to eliminate maloperations.
Consistent compression from the proximal end to the distal end of the jaw while firing (dual compression).

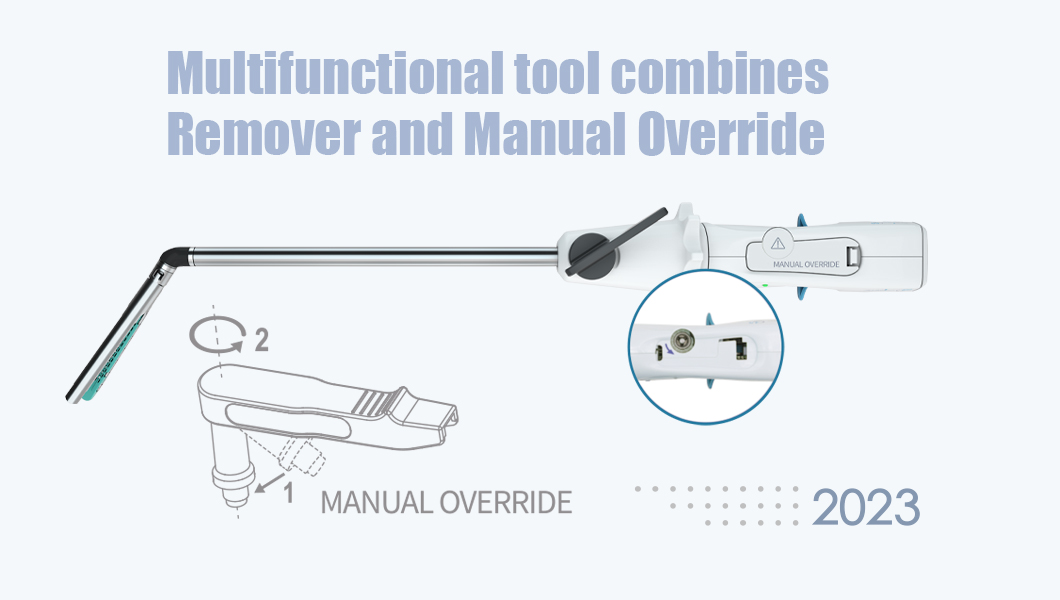

● Take the manual override tool out of the package
● Follow the Step 1 shown on the tool to open the bolt

● Open the manual override cover to insert the bolt into the bolt shaft

● Follow the arrow or Step 2 shown on the manual override tool and turn it counterclockwise, until it can no longer turned, the knife will be back to home position

● Open the jaw and complete the operation

Evidence

Description text Design placeholder please provide customer description text Design placeholder please provide customer description text Design placeholder please provide customer...

Product Catalogue

Product Catalogue 2023

2022-09-26
See more
Publication

Publication

2022-09-26

Stay connected with us in the following ways

Tel：

+86 18015302028
Email：

enquiry.obd@fulbrightmed.com
WhatsApp：

18015302028
Add

Room 212-213, Mirae Asset Tower, No.166 Lujiazui Ring Road, Pudong, Shanghai 200120, China.

Online Message

Please leave a message if you have any question, comment, suggestion and innovation idea, or you need a demo for trial. Your information will be kept confidential. Thank you.

Order Information

D Series Battery

60mm

Model	Shaft Length(mm)	Max Firings	Pcs/Carton
DSMS60	280	15	3
DSMM60	340	15	3
DSML60	440	15	3

* Reloads remover included in the package, curved tip is optional

45mm

Model Shaft Length(mm) Max Firings Pcs/Carton

DSMS45 280 15 3

DSMM45 340 15 3

DSML45
440 15 3

Model	Shaft Length(mm)	Max Firings	Pcs/Carton
DSMS45	280	15	3
DSMM45	340	15	3
DSML45	440	15	3

* Reloads remover included in the package, curved tip is optional

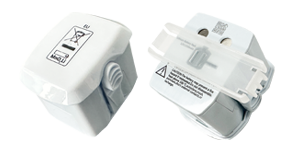

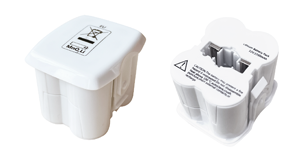

Model	Voltage	Capacity
FMB	12V	1550mAh
