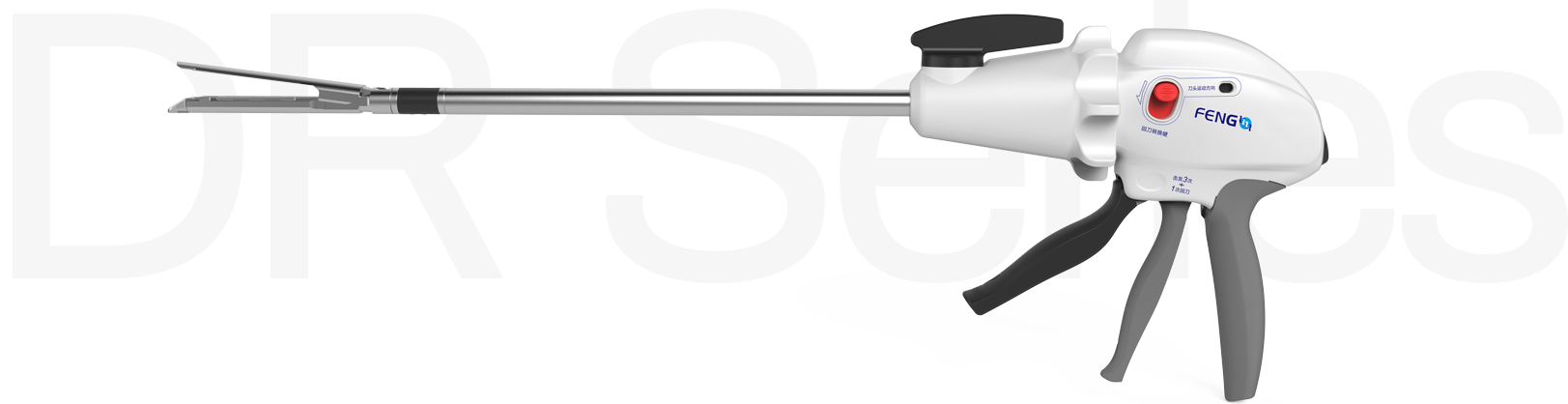

DR Series

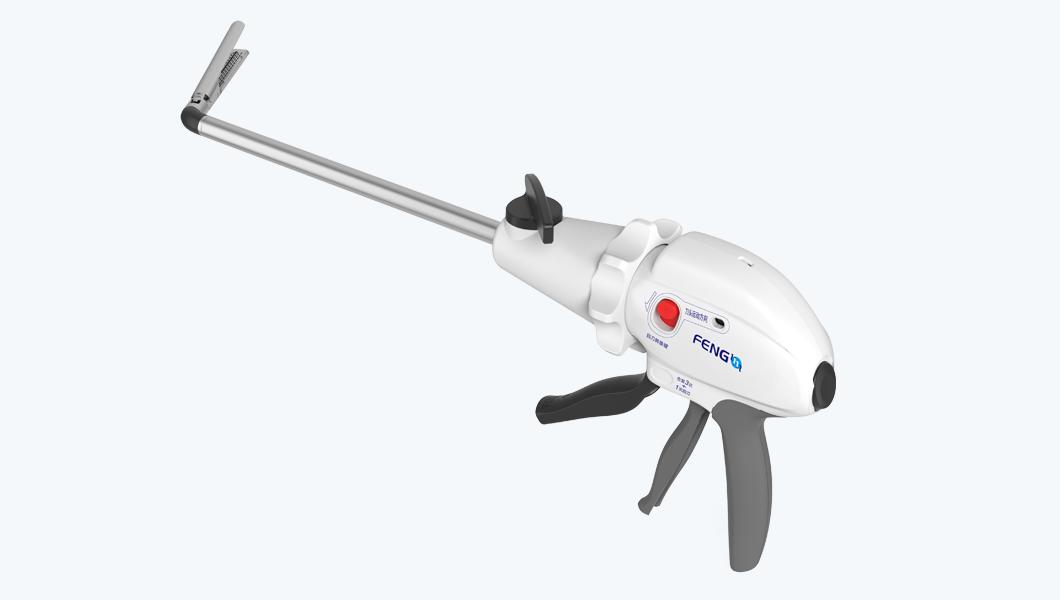

Reliable, Economical, Classical Manual Endoscopic Linear Cutter Stapler

Jaw-rotating collar
Stepless jaw-articulating lever
Anvil jaw
Blade indicator
Reload jaw
Articulation joint
Shaft
Firing trigger
Jaw-closing trigger
Handle
Blade direction display
Anvil-releasing button
Blade-retrieving button

¹ ONLY to be used if the blade can not be refrieved back.

Features

Compact design featuring a shorter trigger-handle distance (≈ 1cm shorter at the proximal end of the handle and ≈ 1.5cm shorter at the distal end).
Integrated anvil with cold extrusion technology.
Tissue bunching cordon marker (yellow line) and blade seating align ment marker (red line).
Patented jaw design with a triple slide rail-and-block combination rather than the double rail-and-block design of the Endo GIA™.

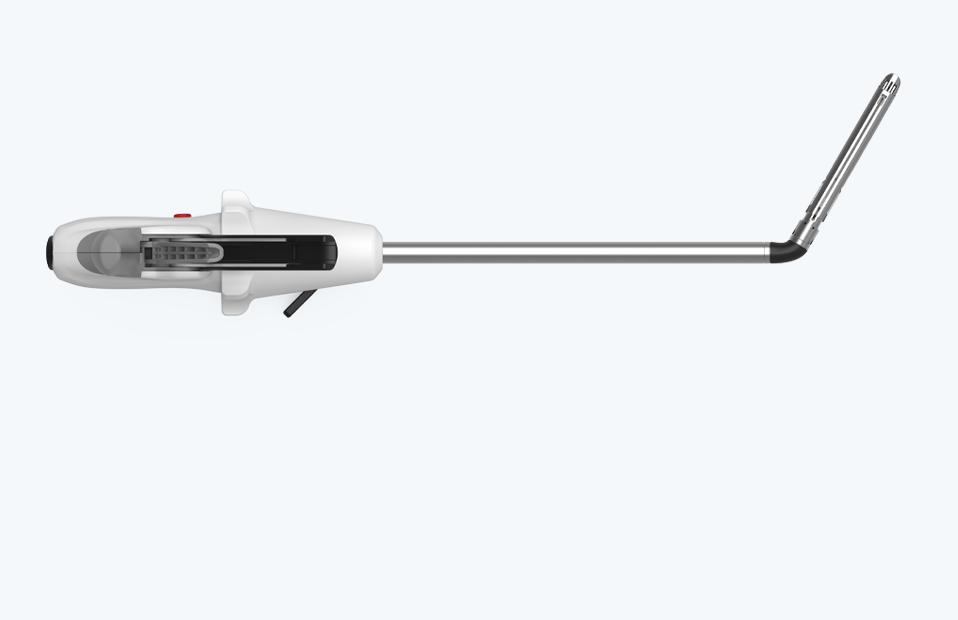

Stepless jaw-articulating lever.
No less than 45° articulation on each side of the articulation joint.
Detachable arched tip (optional).

Benefits

Small hand friendly, making it easier for them to fire the device.
Offers 30-40% higher strength vs. the Endo GIA when compressing tissue before firing (pre-compression).
Ensures operation compliance to eliminate maloperations.
Consistent compression from the proximal end to the distal end of the jaw while firing (dual compression).

● The articulating jaw can adopt any angle in the -45° to 45° articulation range. Or 45° articulation range on both sides.

● Facilitates jaw placement in narrow spaces like the lower rectum.
● Makes tissue incisions and pene trationpenetration easier.

Evidence

Description text Design placeholder please provide customer description text Design placeholder please provide customer description text Design placeholder please provide customer...

Publication

Placeholder text Placeholder text Placeholder text Placeholder text

2022-09-26

Stay connected with us in the following ways

Tel：

+86 18015302028
Email：

enquiry.obd@fulbrightmed.com
WhatsApp：

18015302028
Add

Room 212-213, Mirae Asset Tower, No.166 Lujiazui Ring Road, Pudong, Shanghai 200120, China.

Online Message

Please leave a message if you have any question, comment, suggestion and innovation idea, or you need a demo for trial. Your information will be kept confidential. Thank you.

Order Information

DR Series

60mm

Model	Shaft Length(mm)	Articulation	Max Firings	Pcs/Carton
DRES60	280	Yes	15	3
DREM60	340	Yes	15	3
DREL60	440	Yes	15	3

* Reloads remover included in the package, curved tip is optional

45mm

Model Shaft Length(mm) Articulation Max Firings Pcs/Carton

DRES45 280 Yes 15 3

DREM45 340 Yes 15 3

DREL45
440 Yes 15 3

Model	Shaft Length(mm)	Articulation	Max Firings	Pcs/Carton
DRES45	280	Yes	15	3
DREM45	340	Yes	15	3
DREL45	440	Yes	15	3

* Reloads remover included in the package, curved tip is optional
